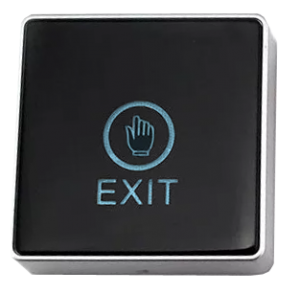

Boton de salida TOUCH Oscuro
- Output Contact: NONCCOM
- Input: DC12V
- Surface installation, Black Color
- Standard Structure: scratch-resistant acrylic panel (can be loaded into a standard 86 bottom box)
- Mechanical Life: 500000 tested
- Trigger device: Touch
- Surface Intallation
- LED indicator status: white patterned light is off state
- LED Status: pattern light blue to standby
- LED Status: patterns of work status indicator is red
- Operating temp: 10~+55℃(14-131F)
- Operating Humidity: 0-95% (non- condensing)
- Product Size:
- ZDBT-901:86Lx86Wx29H(mm)
- ZDBT-901B: 86Lx56Wx25H(mm)
- Packing size: 105*95*42mm; Weight: 0.1kg

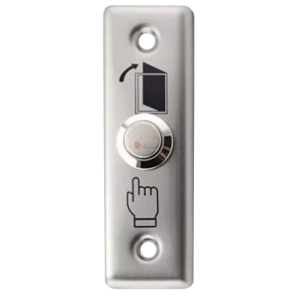

Boton de salida Metalico 91×28mm
- Mechanical Life: 500000 tested
- Current Rating: 3A 36VDC Max
- Suitable for Door: Hollow Door
- Operating temp: 10~+55℃(14-131F)
- Operating Humidity: 0-95% (non- condensing)
- Product Size:
- ZDBT-801A: 90×90mm; Packing size: 105*95*42mm; Weight: 0.15kg
- ZDBT-801B: 92×30mm; Packing size: 105*95*42mm; Weight: 0.1kg


Pulsador Boton Touch para apertura de puerta
- Salida contacto: NONCCOM
- Entrada: DC12V
- Instalación en superficie, Color negro
- Estructura estándar: panel de acrílico resistente a los arañazos (puede ser cargado en una caja estándar 86 inferior)
- Vida mecánica: 500000 probado
- Gatillo: toque
- Instalación de superficie
- Estado del indicador LED: luz blanca estampada es estado
- Estado del LED: patrón azul al modo de espera
- Estado del LED: patrones de indicador de estado de trabajo es de color rojo
- Temp del funcionamiento: 10~+55℃(14-131F)
- Humedad de funcionamiento: 0-95% (sin condensación)
- Tamaño del producto:
- ZDBT-901:86Lx86Wx29H(mm)
- 901B ZDBT: 86Lx56Wx25H(mm)
- Tamaño del embalaje: 105 * 95 * 42 mm; Peso: 0,1 kg

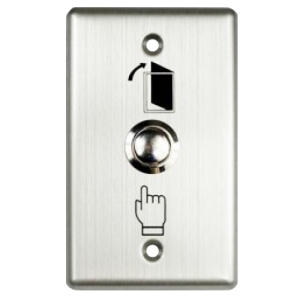

Boton de salida Metalico 115*70mm
- Mechanical Life: 500000 tested
- Current Rating: 3A 36VDC Max
- Suitable for Door: Hollow Door
- Operating temp: 10~+55℃(14-131F)
- Operating Humidity: 0-95% (non- condensing)
- Product size
- ZDBT-801C: 86×86mm; Packing size: 105*90*40mm; Weight: 0.25kg
- ZDBT-801D: 86×50mm; Packing size: 105*90*40mm; Weight:0.16kg

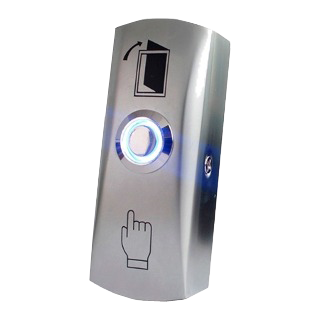

Boton de salida Metalico 91×28mm
- Standard Structure Zinc Alloy Plate, Steel Button
- Current Rating 3A@36VDC Max
- Output Contact NO/COM
- Mechanical Life 500000 tested
- Suitable for Door All Kind of the Narrow Door Frame
- Operating temp -20~+50℃
- Operating Humidity 0-95% (relative humidity)
- Panel Material Alloy Plate, Sandblast Finished
- Dimensions 80Lx30Wx24H(mm) ; Weight 0.12kg
Boton de salida Metalico 90*90mm
- Vida mecánica: 500000 probado
- Corriente nominal: 36VDC 3A Max
- Conveniente para la puerta: hueco de puerta
- Temp del funcionamiento: 10~+55℃(14-131F)
- Humedad de funcionamiento: 0-95% (sin condensación)
- Tamaño del producto:
ZDBT-801A: 90× 90mm; Tamaño del embalaje: 105 * 95 * 42 mm; Peso: 0.15kg

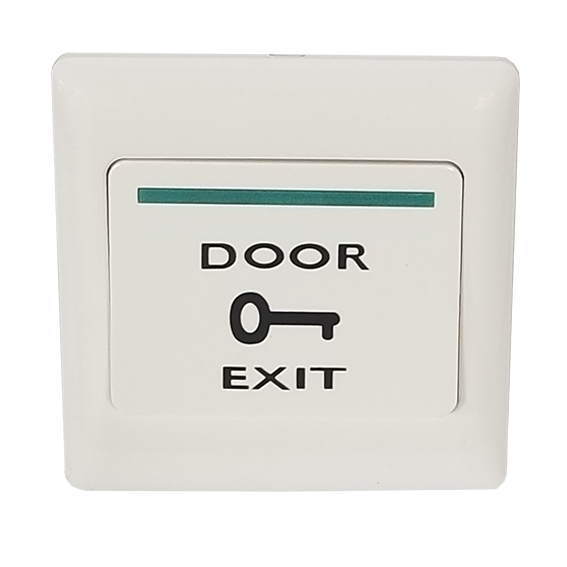

Pulsador Boton Plastico para apertura
- Plastico ABS
- Elegante para edificios de oficina
- Salida Normal Abierto
- Hasta 100.000 ciclos de uso testeados.
- Tension de operacion: Maximo 36VDC y 3Amp.
